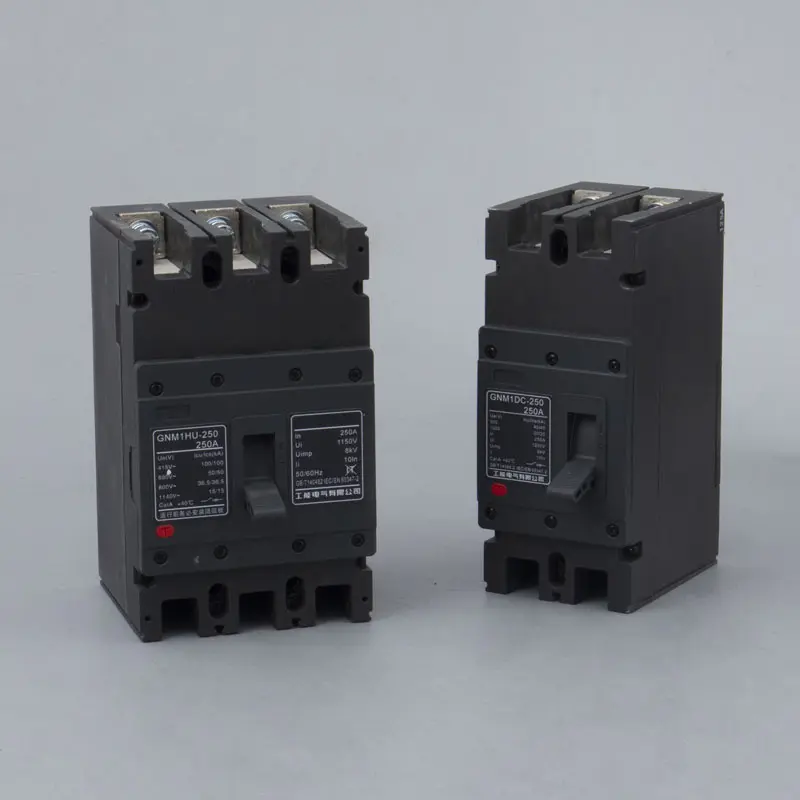

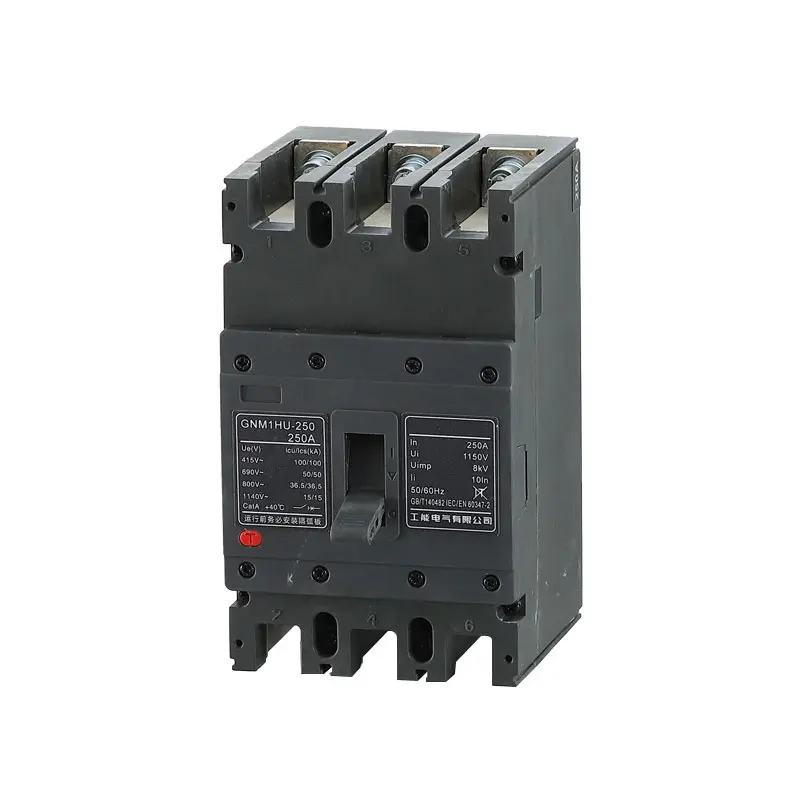

ODM GNM1HU GNM1DC New Energy High Voltage Molded Case Circuit Breaker Manufacturers, Manufacturer

1 / 3

ODM GNM1HU GNM1DC New Energy High Voltage Molded Case Circuit Breaker Manufacturers, Manufacturer

Through years of dedicated research on the actual system operation and customer needs of new energy both domestically and internationally, Gongneng Electric has developed the GNM1 (DC) - (HU) series of new energy dedicated AC/DC molded case circuit breakers.

Send Inquiry

Product Description

The GNM1HU series of molded case circuit breakers represents a major advancement in the field of electrical protection for new energy applications. Developed with a focus on the operating conditions and specific needs of new energy systems, these products meet the requirements of both domestic and international markets. These circuit breakers are designed to ensure the safety and reliability of various energy applications, especially in the growing field of renewable energy.

High Voltage AC Capacity The GNM1HU series features an excellent rated voltage capacity up to AC1000V and rated current up to 400A, making it suitable for diverse energy systems.

Superior Breaking Power With a breaking capacity of up to 30kA at AC800V, these breakers provide strong short-circuit protection to maintain system integrity.

Expanded DC Applications The GNM1DC series handles rated voltages up to DC1500V and currents up to 400A, providing reliable breaking capabilities up to 10kA for DC energy systems.

The GNM1HU and GNM1DC series molded case circuit breakers are designed to comply with international standards such as IEC 60947-1 and IEC 60947-2, as well as national standards including GB/T14048.1 and GB/T14048.2. Strict adherence to established standards ensures that these circuit breakers exceed industry expectations for safety and performance.

These circuit breakers are a model of innovation in electrical protection technology. With high voltage and current ratings, excellent breaking capacity, and strict standards, they are expected to play a vital role in future new energy systems, providing reliable protection and peace of mind for users worldwide.

Frequently Asked Questions

What are the primary applications for the GNM1HU series? They are specifically designed for new energy systems and renewable energy applications, ensuring safety and reliability in modern electrical infrastructures.

What is the maximum voltage rating for the AC series? The GNM1HU series supports a rated voltage capacity of up to AC1000V.

Does the series support Direct Current (DC) applications? Yes, the GNM1DC series is designed for DC applications with rated voltages up to DC1500V and rated currents up to 400A.

What is the breaking capacity of the GNM1HU at AC800V? The series provides an excellent breaking capacity of up to 30kA at AC800V, ensuring robust short-circuit protection.

Which international standards do these circuit breakers meet? They comply with IEC 60947-1 and IEC 60947-2 international standards, as well as GB/T14048.1 and GB/T14048.2 national standards.

What is the maximum current rating available for these breakers? Both the AC and DC series provide rated currents up to 400A to suit various energy system requirements.
