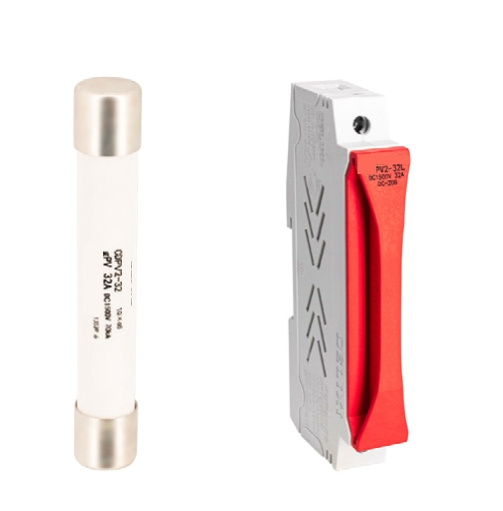

PV2-32 (L) fuse used for solar PV system protection is applicable to short-circuit overload protection in distribution lines with rated voltage not exceeds DC 1500V, rated current not exceeds 35A and rated short-circuit capacity not exceeds 33kA. It is mainly used in solar photovoltaic junction box for short circuit and overload protection of solar photovoltaic power generation devices and other semiconductor devices.
✓Consists of a fusion tube, a contact cap, quartz sand and a fuse element, wherein the fuse element adopts a spot welding process, is firmer, and has stable performance.

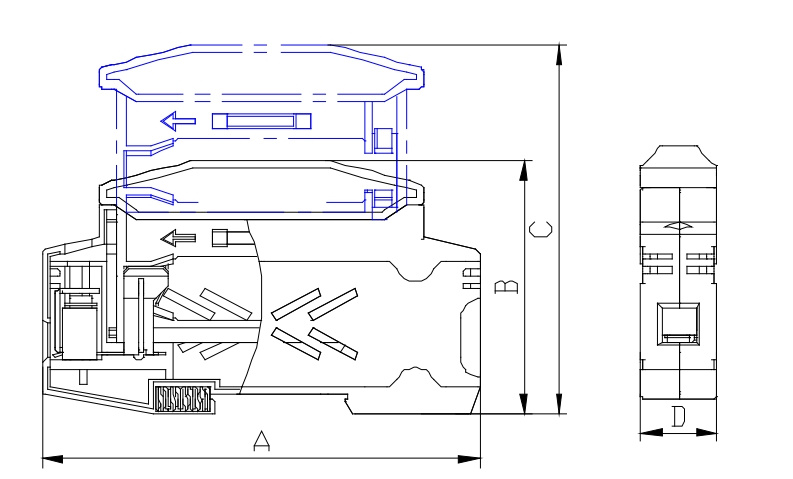

✓Compact size, equipped with PV2-32 (L) fuse type isolator, rail type installation, which is easy to install.
✓Features the advantage of excellent fusing characteristics and low power loss.
Normal Installation Conditions
Ambient temperature: -25°C ~ +60°C. This refers to the air temperature directly surrounding the fuse link, which should not be confused with the room temperature. In practical applications, the temperature of the fuse link can be high as it is enclosed in a support/base and power distribution control cabinet.
Atmospheric conditions: Relative humidity should not exceed 50% at a maximum temperature of +60°C. Higher relative humidity is allowed at lower temperatures. The monthly average minimum temperature of the wettest month shall not exceed -25°C, with a maximum relative humidity of 90%. Preventive measures must be taken against condensation.
Pollution level: 3 | Installation category: Class Ⅲ
Installation place: The fuse shall be free from significant shaking and shock vibration.
When ordering fuses, please indicate the model, specification, quantity, as well as the rated voltage and current grade of the corresponding fuses. For fuses with special specifications or unique current levels, please consult for customized solutions.
Frequently Asked Questions
Q1: What is the rated voltage for the PV2-32 series fuses?A: The PV2-32 and PV2-32L series are designed for DC1500V applications, making them ideal for modern photovoltaic systems.

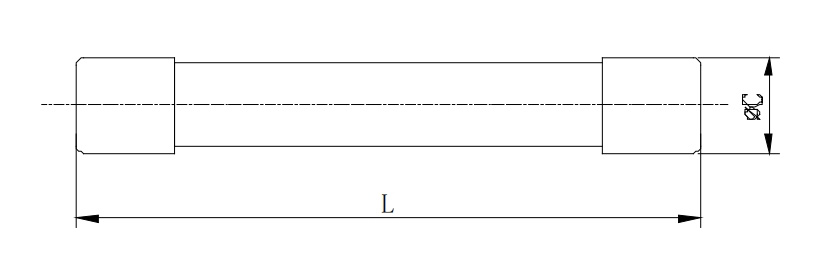

Q2: What are the available sizes for these PV fuse links?A: There are two primary sizes available: 10x65mm (Standard) and 10x85mm (L-type).
Q3: What is the operating temperature range for installation?A: The normal ambient temperature range for the air directly surrounding the fuse link is between -25°C and +60°C.
Q4: How are the fuse type isolators installed?A: The PV2-32 series isolators feature a rail-type installation design, which ensures a compact footprint and easy mounting in power cabinets.
Q5: What is the maximum breaking capacity of these fuses?A: The rated breaking capacity (I1) for these photovoltaic fuses is 33kA at the specified rated voltage.
Q6: Can I request custom current grades for the fuses?A: Yes, while standard ratings range from 1A to 35A, special specifications and current levels can be ordered through professional consultation.
