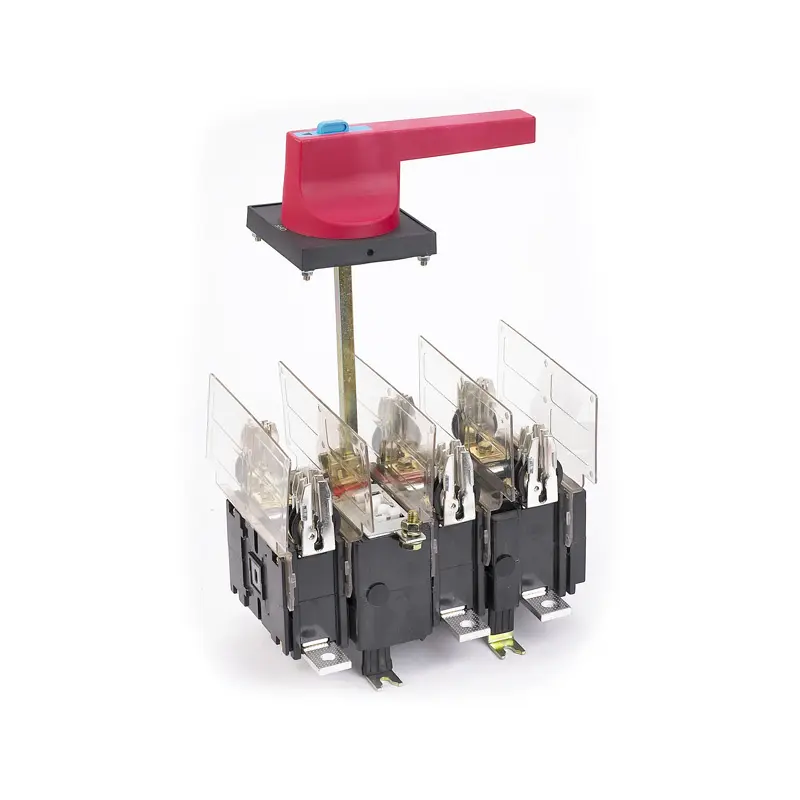

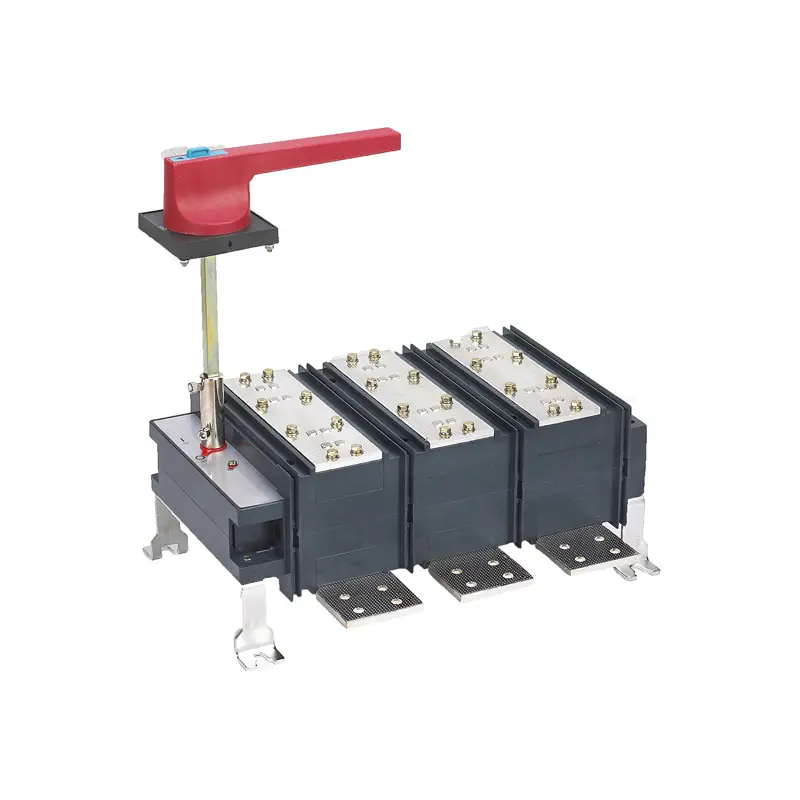

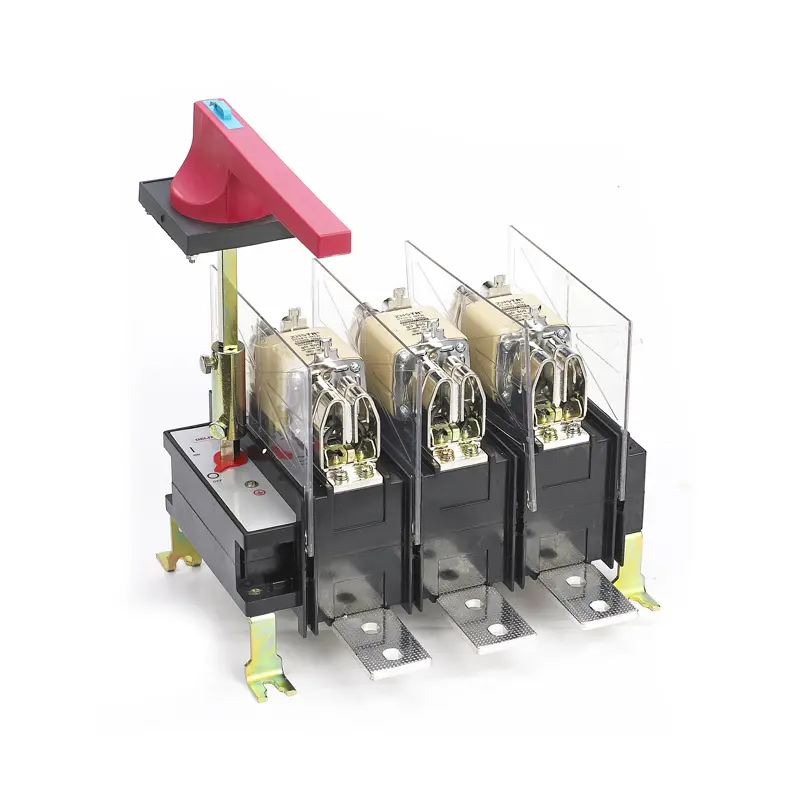

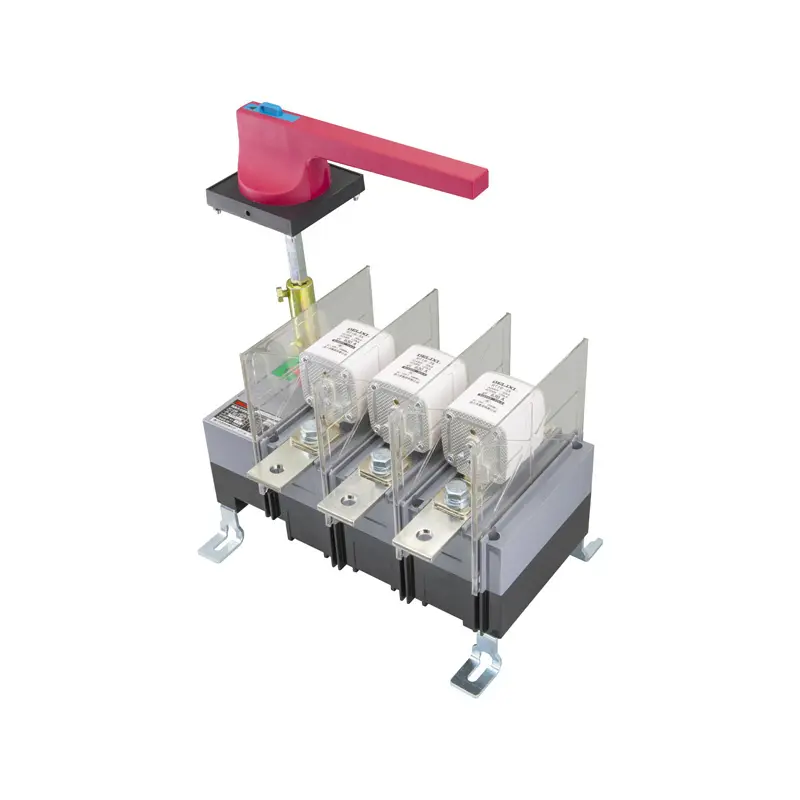

OEM HH15 Series Isolation Switch Fuse Group Supplier, Manufacturer

The HH15 series isolation switch fuse group is mainly used in distribution circuits and motor circuits with high short-circuit currents, as a main switch or master switch for manual infrequent operation.

Send Inquiry

Product Description

Product Selection

Product Name	Current	Number of poles	Auxiliary contact type	Additional Notes
HH15	63	3	D	T
HH15: Single shot HH15S: Dual Throw	63: 63A 1250: 1250A ...	3: 3P 4: 4P, with switchable neutral pole 3N: 4P, with fixed connection neutral pole	D: No auxiliary contact L: With 1 pair of auxiliary contacts Z: With 2 auxiliary contacts	T: Operation inside the cabinet W: No handle J20: Rod lengthened by 20cm

Product Name	Derivative Model	Rated operating current	Number of poles	Auxiliary contact	Additional Notes
HH15	-	125	3	D	T
HH15A: Contact series structure HH15P: Contact parallel structure	Default: Single throw switch S: Double throw switch	125: 125A ... 3150: 3150A	3: 3P 4: 4P with switchable neutral pole 3N: 4P with fixed connection neutral pole	D: No auxiliary contact L: With 1 pair of auxiliary contacts Z: With 2 auxiliary contacts	Default: Operation outside the cabinet T: In-cabinet operation J20: Rod lengthened by 20cm W: No handle

Technical Parameters

Specifications HH15	63	125	160	250	400	630	800	1000	1250
Number of poles	3, 4, 3+N							3
Rated insulation voltage Ui(V)	1000
Rated working voltage Ue(V)	AC400V/690V
Mechanical life (times)	15000		12000			3000	500
Operating torque N·m	7.5			16		30		40

Specifications HH15P	125	200	400	630	1000	1250	1600
Conventional thermal current Ith (A)	125	200	400	630	1000	1250	1600
Rated short-time withstand current (kA)	10		15		32
Mechanical life (times)	15000		12000		3000

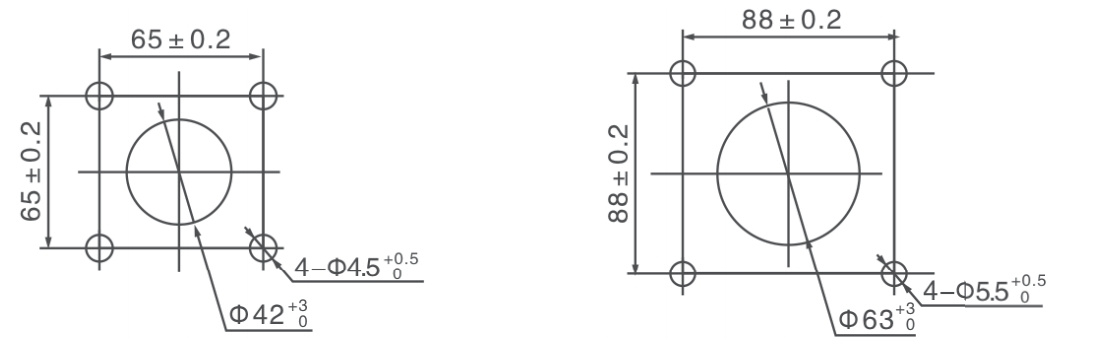

Appearance and Installation Dimensions

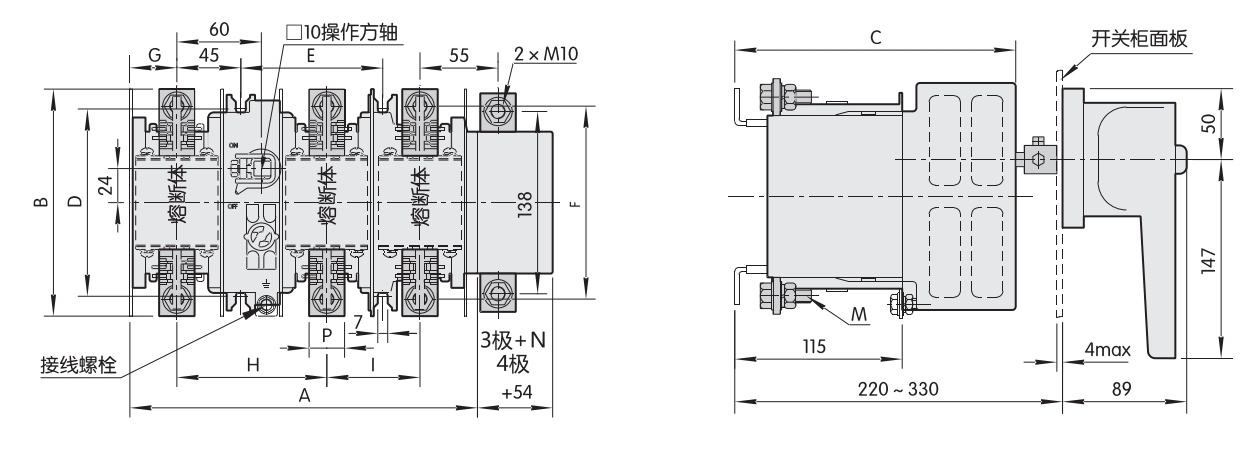

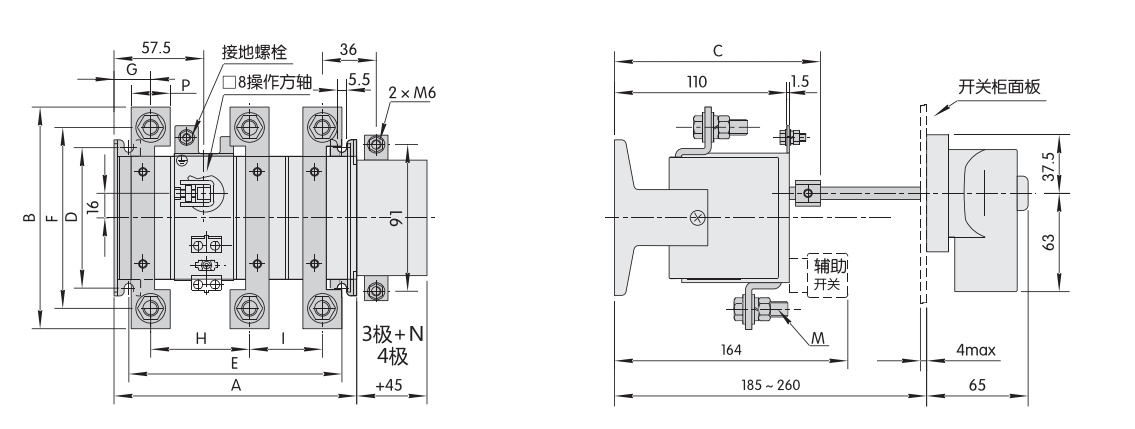

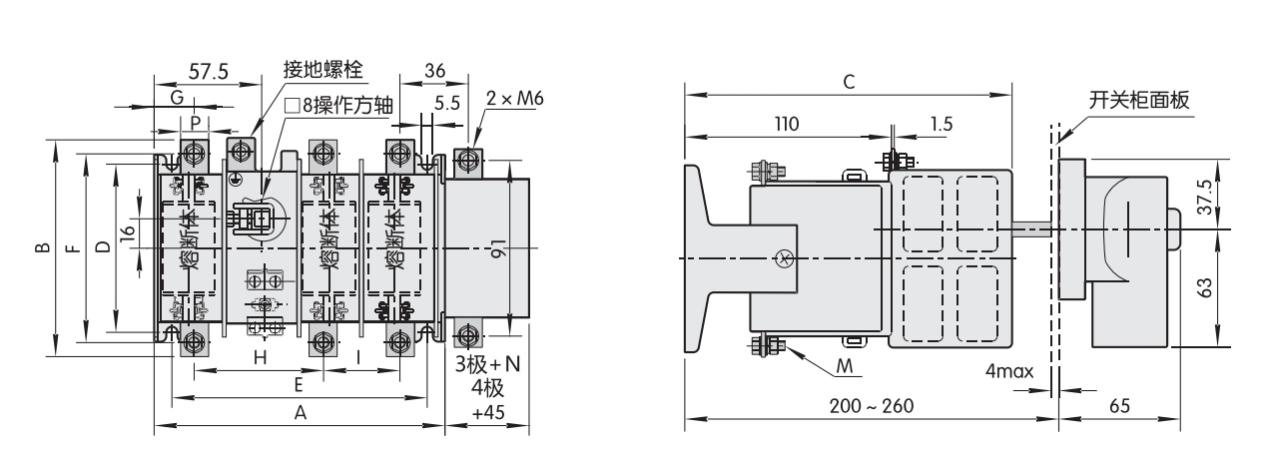

HH15-63, 125/QSA Series

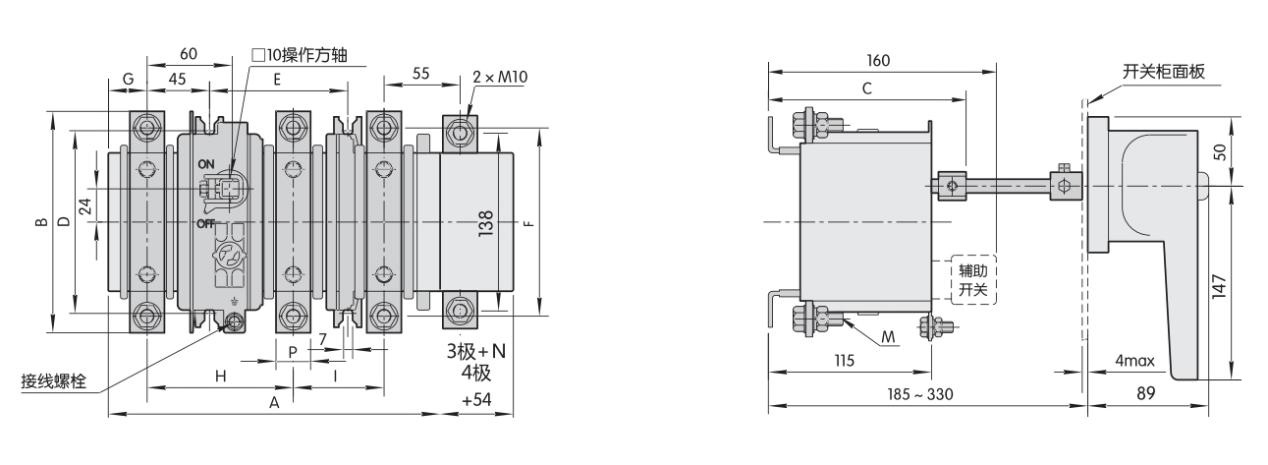

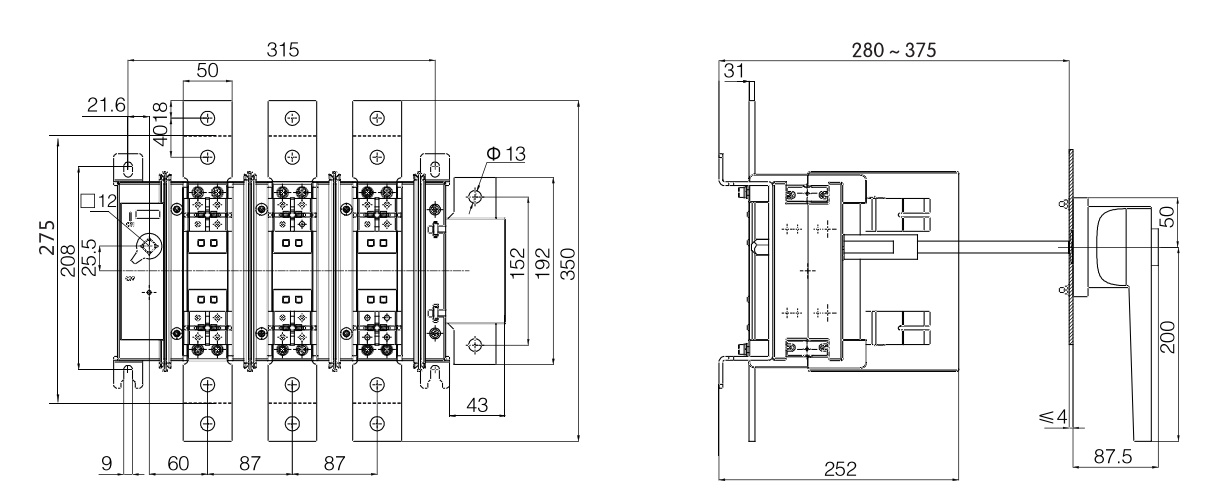

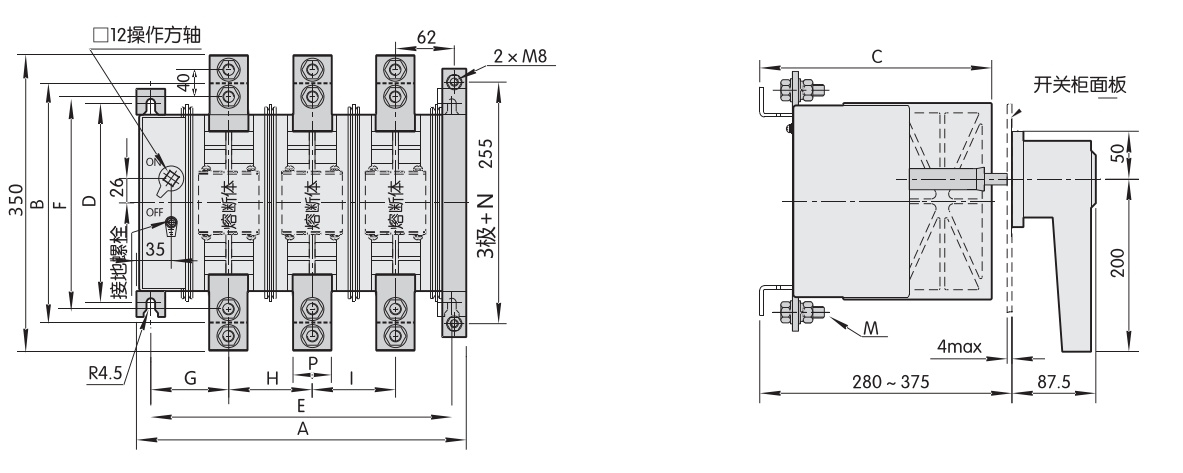

HH15-630, 800 Series

Note: HH15-630 is for single-hole wiring, HH15-800 is for double-hole wiring.

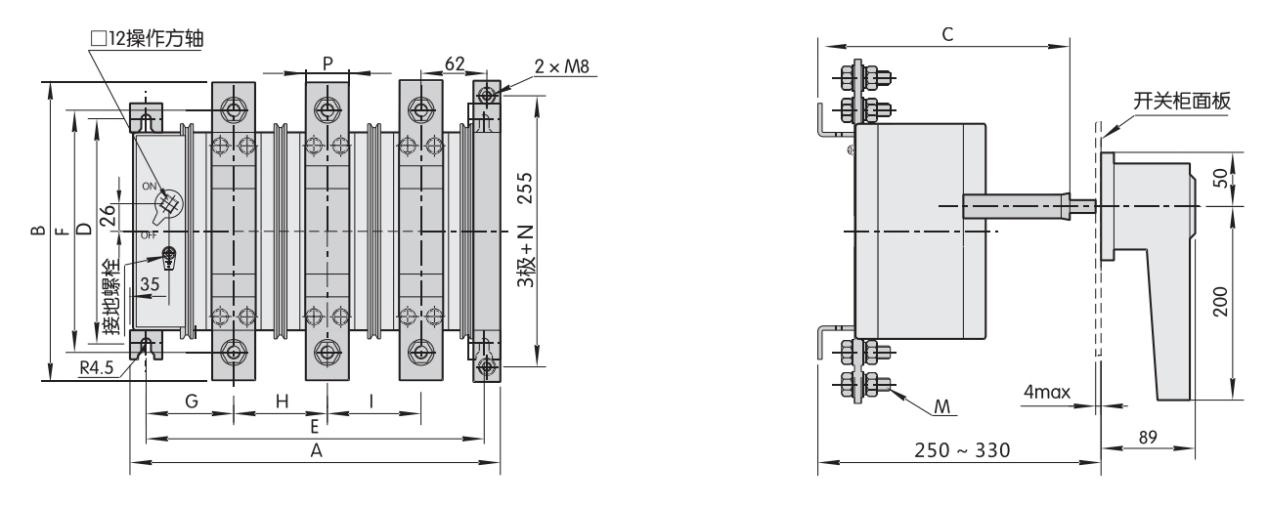

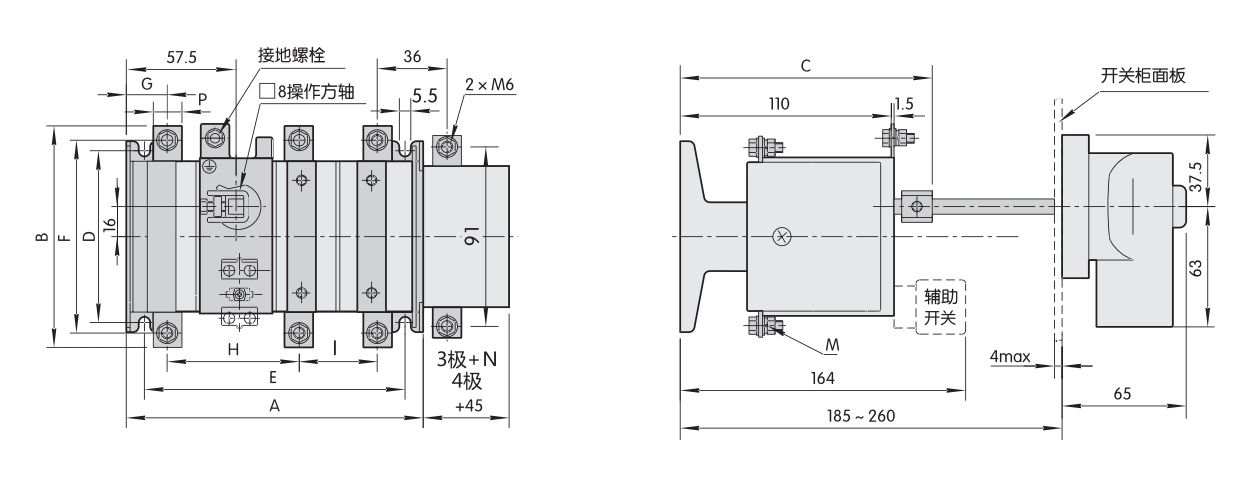

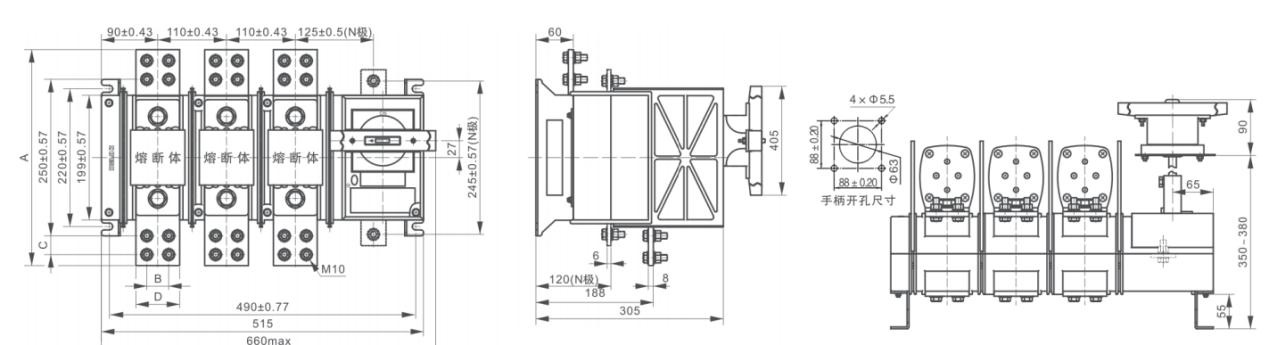

HH15A Series (125 - 1600A)

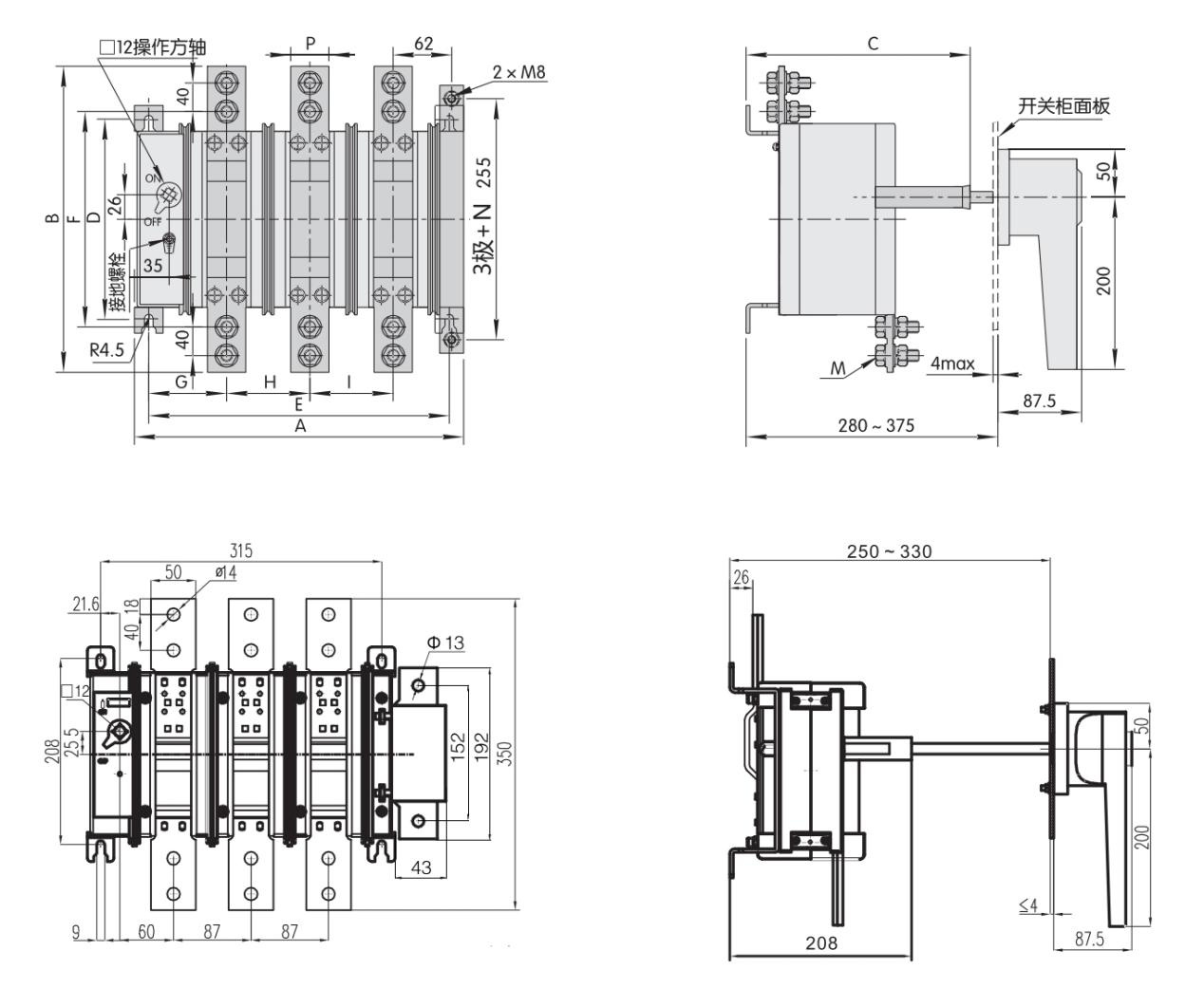

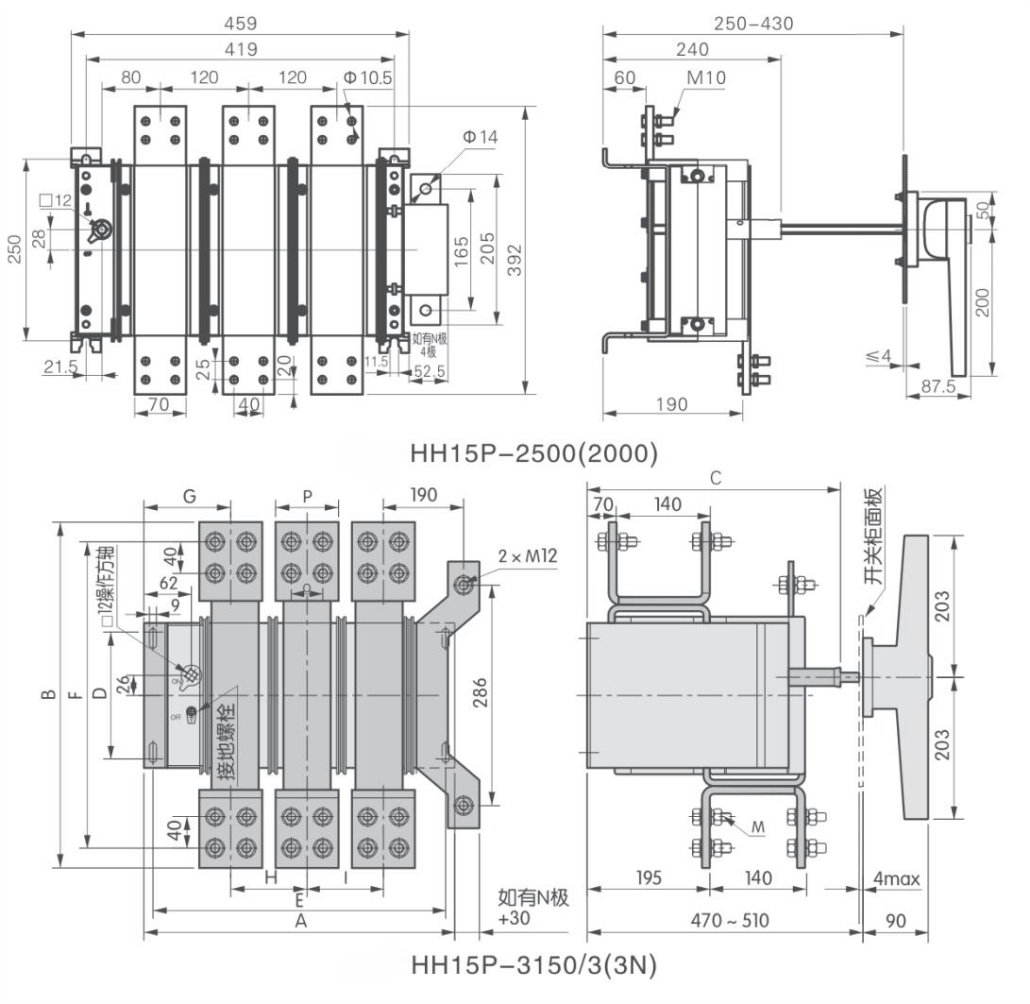

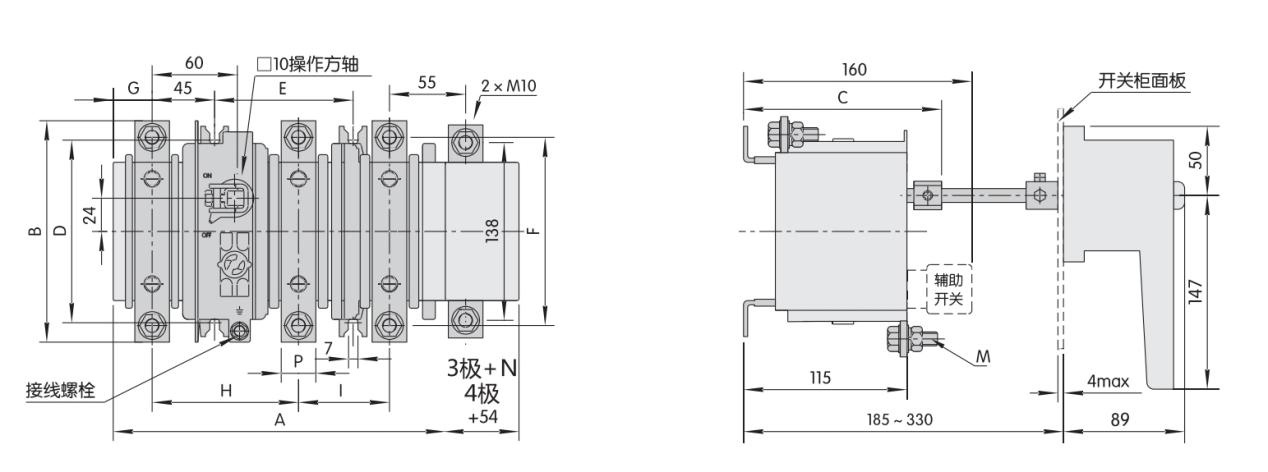

HH15P Parallel Structure Series

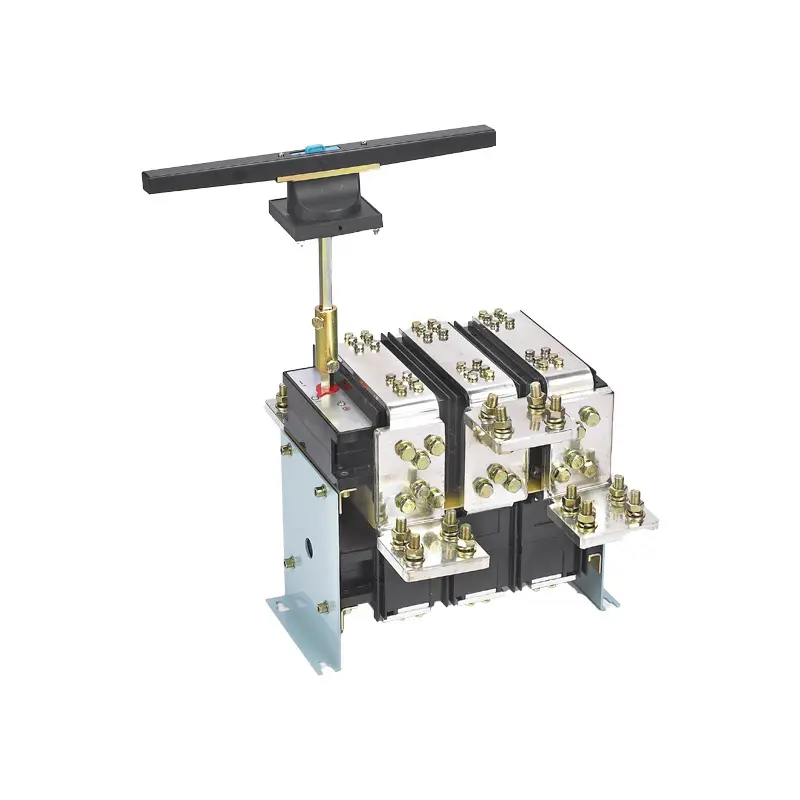

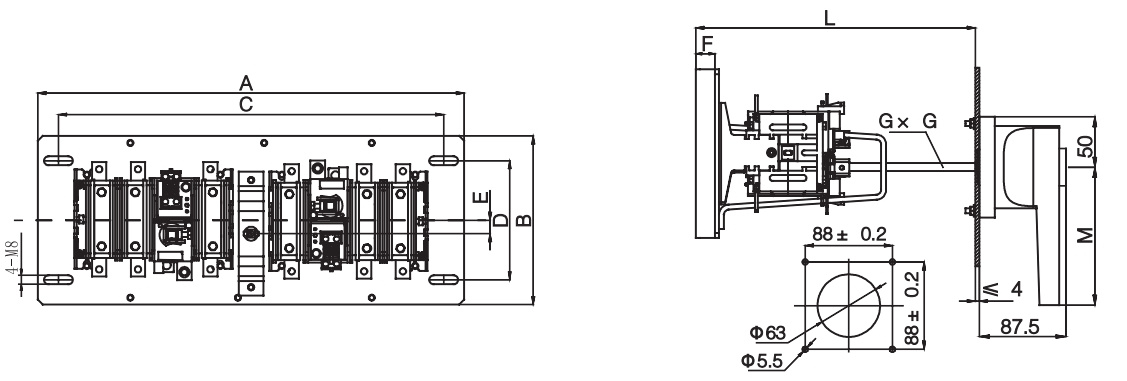

Transfer & Disconnect Switch Fuse Sets

Frequently Asked Questions

1. What is the difference between HH15, HH15A, and HH15P models?

HH15 refers to the standard single or dual throw switch. HH15A features a contact series structure, while HH15P utilizes a contact parallel structure for higher current capacities and different mechanical performance.

2. What are the rated insulation and working voltages?

The HH15 series has a rated insulation voltage (Ui) of 1000V and a rated working voltage (Ue) of AC400V or 690V. Some configurations also support DC-23B at 250V/500V.

3. How many poles are available for these disconnect switches?

Most models are available in 3P, 4P (with switchable neutral), and 3N (4P with fixed connection neutral pole) configurations to meet various wiring standards.

4. Can the switch be operated from inside the electrical cabinet?

Yes. By selecting the 'T' additional note option during selection, the product is configured for operation inside the cabinet. The default configuration is for operation outside the cabinet.

5. What is the expected mechanical life of the HH15 series?

Mechanical life varies by current rating: smaller units (63-125A) offer up to 15,000 operations, while larger industrial units (over 1000A) range from 300 to 3,000 operations.

6. Are auxiliary contacts available for status monitoring?

Yes, models can be equipped with 'L' (1 pair of auxiliary contacts) or 'Z' (2 auxiliary contacts) options. The auxiliary contacts have a heating current rating (Ith) of 5A at 380V AC15.
