OEM XRNT1 Type High Voltage Current Limiting Fuse For Transformer Protection Supplier, Manufacturers

High-voltage current-limiting fuses are suitable for AC 50HZ, rated voltage 36-12KV systems, and can also be used in conjunction with other electrical appliances (such as switches, contactors, etc.) as overload or short-circuit protection for power equipment such as motors, transformers, and capacitors. XRNT1 high-voltage current-limiting fuses (12-36kV/50Hz) are designed for transformer protection, providing overload and short-circuit protection, complying with BS/DIN/IEC international standards, and are the guarantee for safe operation of power systems.

Send Inquiry

Product Description

XRNT1 high-voltage current-limiting fuse is a device used to protect power equipment from overload or short circuit, ensuring the safe and stable operation of the power system.

XRNT1 fuses are designed for AC 50Hz systems with rated voltages from 12kV to 36kV. Their rugged structure enables them to effectively limit current under fault conditions, thereby preventing damage to important power equipment such as transformers, motors and capacitors. XRNT1 fuses can be seamlessly integrated with other electrical equipment such as switches and contactors to provide comprehensive overload and short-circuit protection, ensuring smooth and efficient operation of the entire power system.

Compliance with international standards is a major feature of the XRNT1 fuse. It complies with British Standards (BS), German Standards (DIN) and International Electrotechnical Commission (IEC) standards, ensuring that it meets strict performance standards. The fuse has undergone extensive testing to verify its reliability and effectiveness in practical applications, making it an ideal choice for engineers and technicians.

XRNT1 transformer protection high voltage current limiting fuse is an indispensable component in modern power systems. Its overload and short circuit protection function can not only extend the service life of electrical equipment, but also improve the overall safety and stability of the power system. For any organization committed to maintaining operational integrity and protecting power infrastructure, high-quality protection devices like XRNT1 fuses are essential.

Selection Guide

Product Name	Size	Rated voltage	Installation	Type	Current Specifications
XRNT1	D:Φ51 / F:Φ76 / X:Φ88	12kV	M: Busbar / Default: Plug-in	T: Fuse link	6.3A - 200A

Technical Parameters

Model	XRNT1-12/40	XRNT1-12/125	XRNT1-12/200
Current specification (A)	6.3~40A	50~125A	160, 200A
Fuse size (mm)	Φ51	Φ76	Φ88
Rated voltage (kV)	12
Breaking capacity (kA)	31.5
Standards	GB/T 15166.2 / IEC / BS / DIN

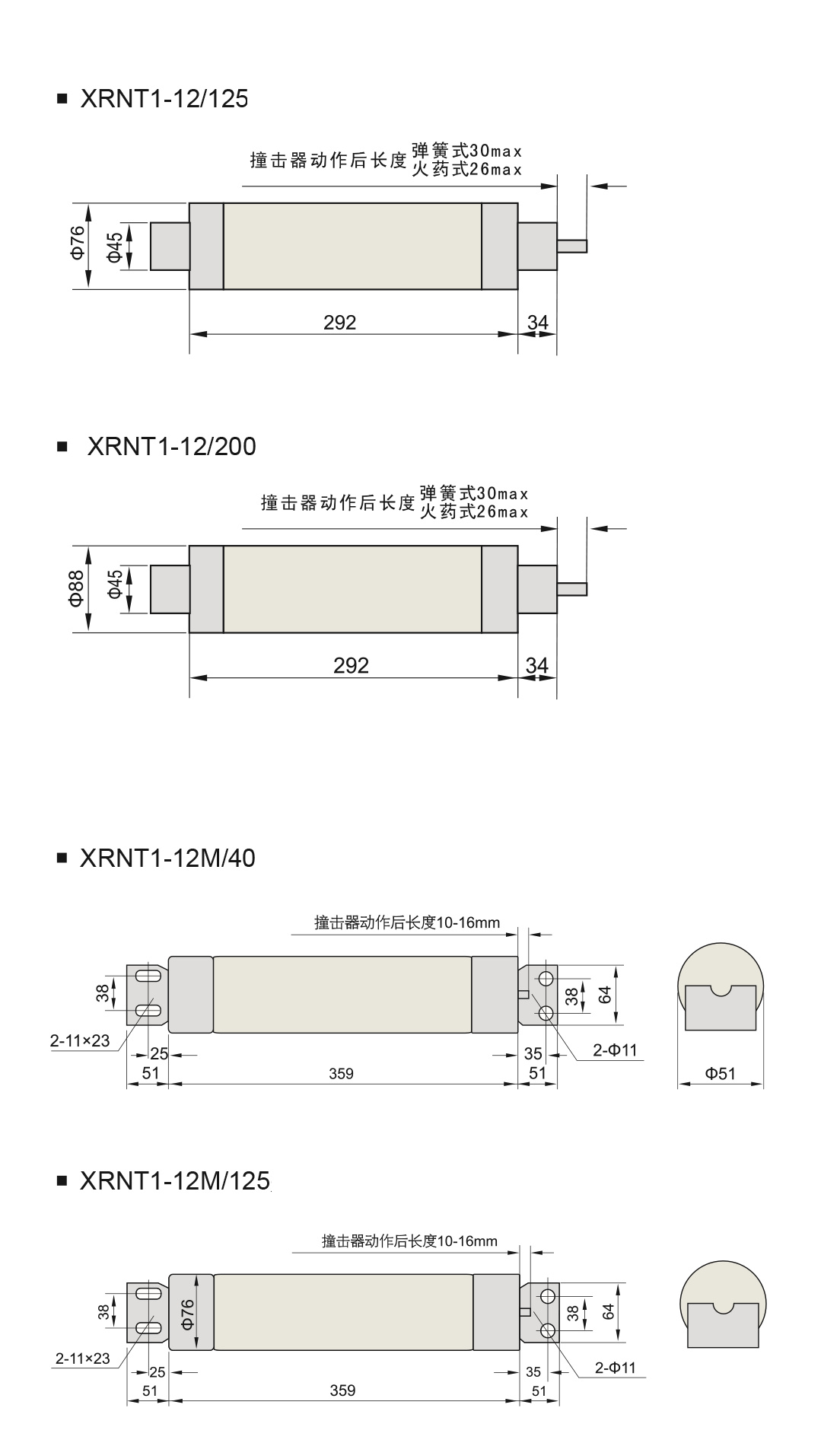

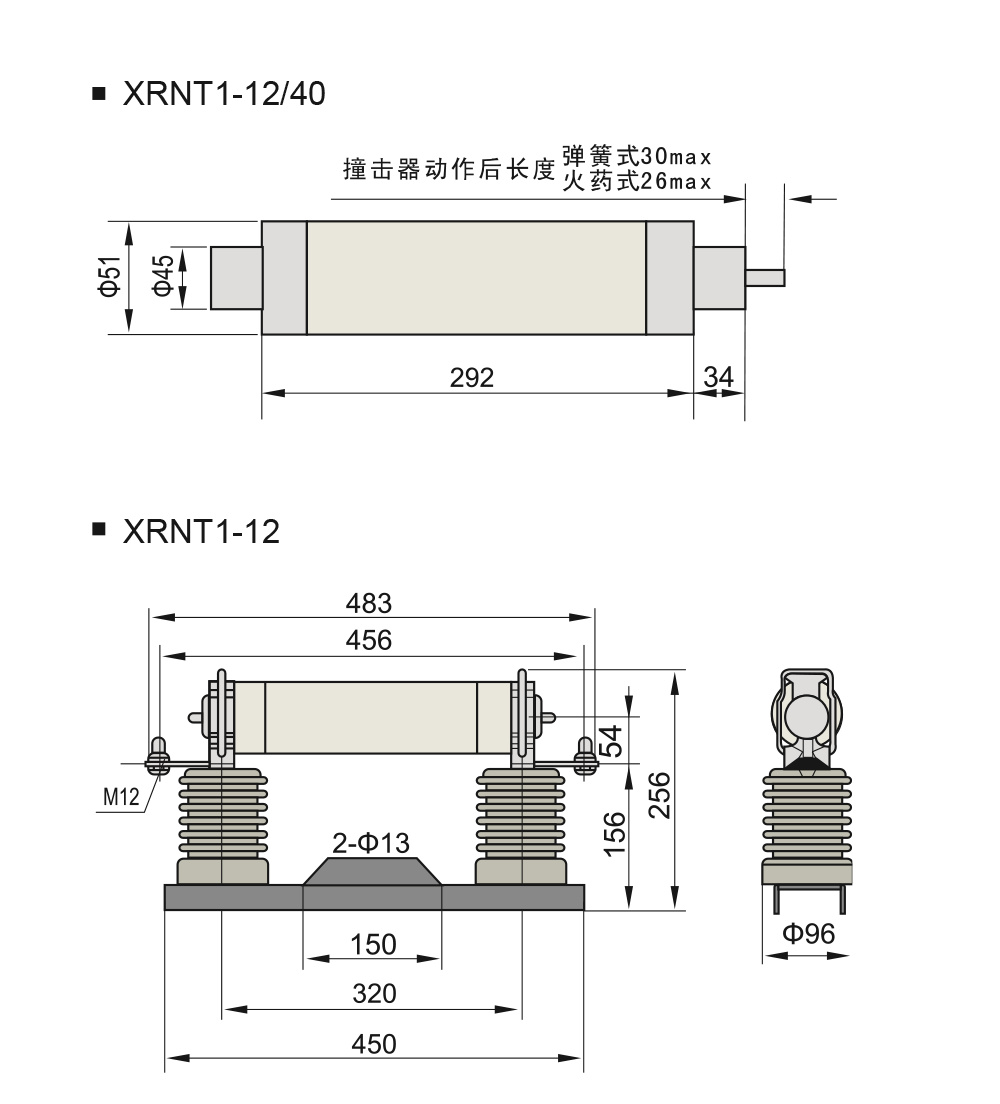

Appearance and Installation Dimensions (mm)

Frequently Asked Questions

What is the rated voltage range for XRNT1 fuses?

XRNT1 high-voltage current-limiting fuses are designed for systems with rated voltages ranging from 12kV up to 36kV.

Which electrical standards does this fuse comply with?

The XRNT1 fuse complies with multiple international and national standards, including British Standards (BS), German Standards (DIN), International Electrotechnical Commission (IEC), and GB/T 15166.2.

What equipment can the XRNT1 fuse protect?

It is primarily used to protect critical power infrastructure such as transformers, motors, and capacitors from damage caused by overload or short-circuit faults.

What is the breaking capacity of the XRNT1-12 series?

The XRNT1-12 series has a rated breaking capacity of 31.5kA, ensuring high reliability under fault conditions.

Can these fuses be used with contactors or switches?

Yes, XRNT1 fuses are designed for seamless integration with other electrical equipment like switches and contactors to provide comprehensive power system protection.

What are the available installation types for XRNT1?

The XRNT1 supports both busbar type (M) and the default plug-in installation to suit different power system configurations.
